V Shape 12 head 18 head Linear Combination Weigher Semi Weighing Scale
- Model
- SW-LC18
Item specifics
- SUS304
- Brushed finish
Product review
Description
V Shape Linear Combination Weigher Linear Weigher
Application
It is mainly apply in semi-auto or auto weighing fresh/frozen meat, fish, chicken, vegetable and various kinds of fruit, such as sliced meat, lettuce, apple etc.
Fresh fish
Carrot
Wooden log
Cucumber
Features
Belt weighing and delivery into package, only two procedure to get less scratch on products;
Most suitable for sticky & easy fragile in belt weighing and delivery;
All belts can be take out without tool, easy cleaning after daily work;
All dimension can be customize design according to product features;
Suitable to integrate with feeding conveyor & auto bagger in auto weighing and packing line;
Infinite adjustable speed on all belts according to different product feature;
Auto ZERO on all weighing belt for more accuracy;
Optional index collating belt for feeding on tray;
Special heating design in electronic box to prevent high humidity environment.
Specification
Model | SW-LC16 | ||
Weigh head | 16 | ||
Capacity | 10-2500g | ||
Combine rate | 10-6000g | ||
Speed | 5-25 bags/min | ||
Weigh belt size | 300L*120W mm | ||
Collecting belt size | 1350L*165W mm | ||
Accuracy | 0.1-3.0g | ||
|
Control panel
|
10" touch screen
|
||
|
Drive system
|
Stepper motor
|
||
|
Weighing method
|
Load cell
|
||
|
Voltage
|
220V 50 HZ/60 HZ,Single phase
|
||
Power supply | 1.0KW |

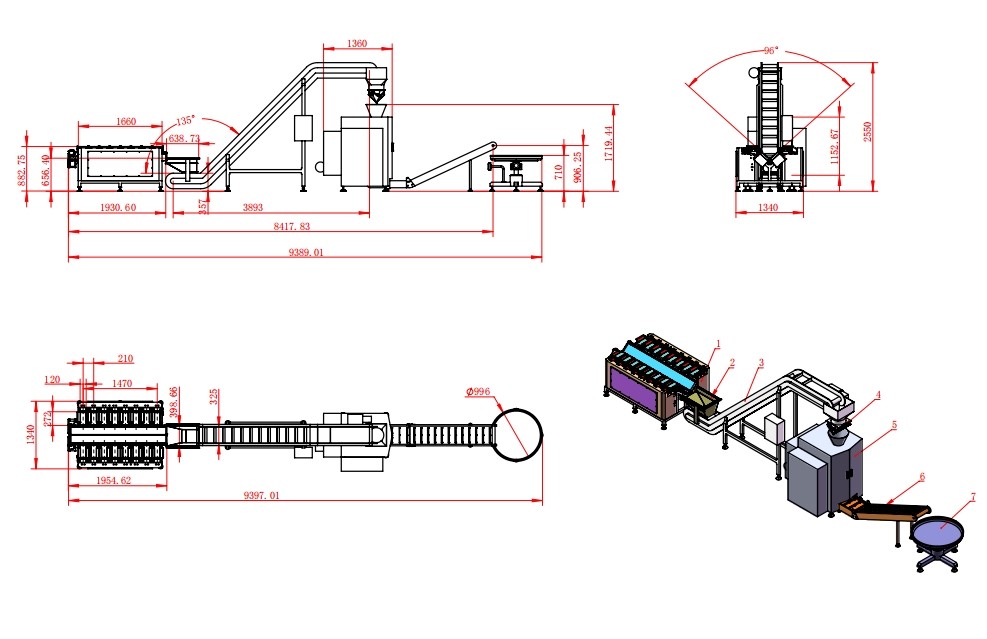

Machine drawing
