Combine 10 head vertical packaging machine
Combine 10 head vertical packaging machine
Combine 10 head vertical packaging machine
Combine 10 head vertical packaging machine
Combine 10 head vertical packaging machine
Combine 10 head vertical packaging machine
Model
SW-M10P420

Item specifics

Brushed finish
SUS 304
Plain plate
Dimple plate

Product review

Description

Combine 10 head vertical weighing packaging machine
Application
Combine packing line apply in all kinds of snack packing such as seed,dried fruit ,popcorn etc .
Bean
Nut
Maize
Snack

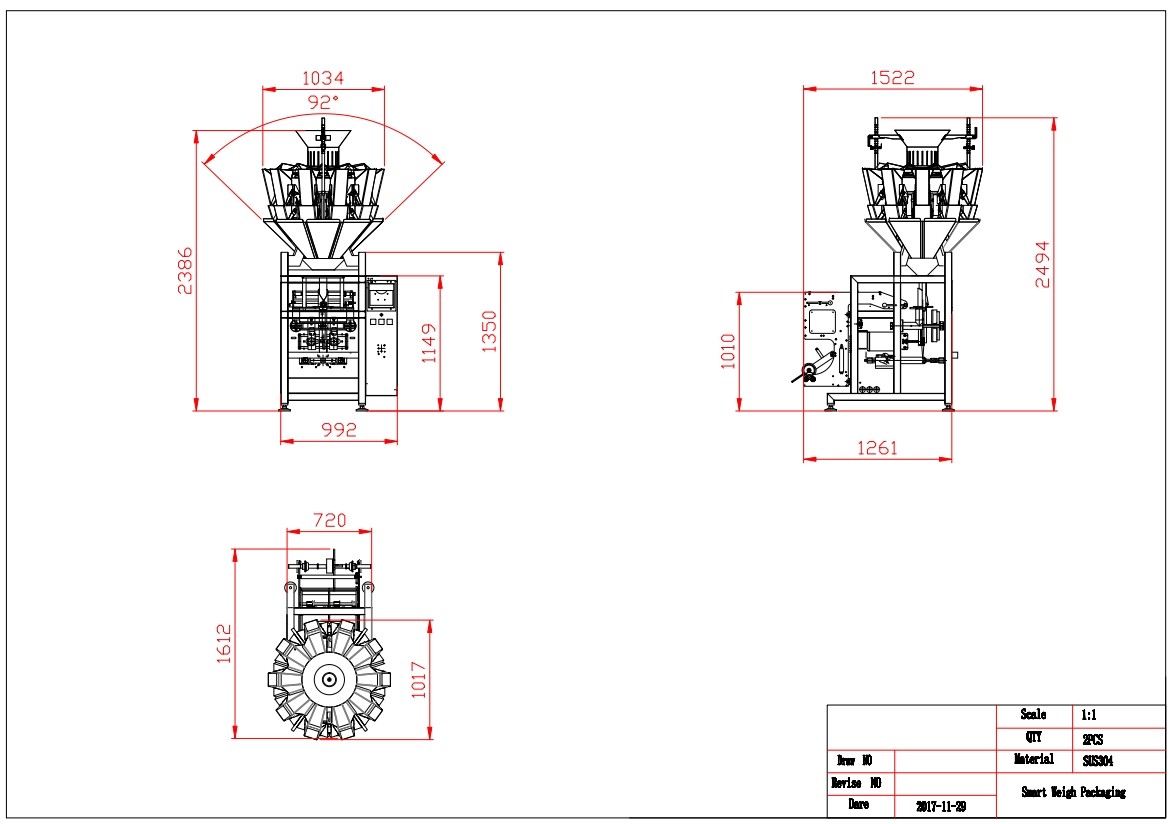

Machine Drawing
Features
① Fully-automatically procedures from material feeding, weighing, filling and bag-making, date-printing to finished products output;
② High weighing precision and efficiency,with speed as fast as 50 bags per minute;
③ Multi-languages touch screen for various clients, English, French, Spanish, etc;
④ Combine design,small ground occupation,saving more space and cost;
⑤ Double film pulling belt with servo system;
⑥ Designed and Manufactured in accordance with the CE Safety regulations;
⑦ Only control touch screen to adjust bag deviation. Simple operation.
Specifications
Model
M10P420
Weight range
10-800g
Speed
10-50 bags/min
Accuracy
0.2-1.5g
Bag size
50-800mm(L),80-200 mm(W)
Bag stype
Pillow bag,pillow bag with gusset
Bag material
Laminated film,Mono PE film
Film thickness
0.04-0.09mm
Weigh hopper volume
1.6L
Control panel
7" touch screen
Air consumption
0.8 Mpa,0.4 m³/min
Power supply
220V 50/60HZ,15A,4000W
