SW-B1 Z Type Bucket Conveyor Z Elevator Lifter Auxiliary Equipment

Group Auxiliaries
Min. Order 1 set
Terms of Payment L/C, T/T
Update Time 2020-09-10
Item specifics
ConstructionStainless steel 304
Brushed finishStainless steel 316
Convey height
1800-4500 mm
Bucket volume
1.8 L or 4 L
Carrying speed
40-75 buckets/min
Bucket material
white PP (dimple surface)
Vibrator hopper size
550 L*550 W
Power supply
0.75 kW
220 V, 50 Hz or 60 Hz; Single Phase
Packing dimension
2214 L*900 W* 970 H mm
Gross weight
600 kg

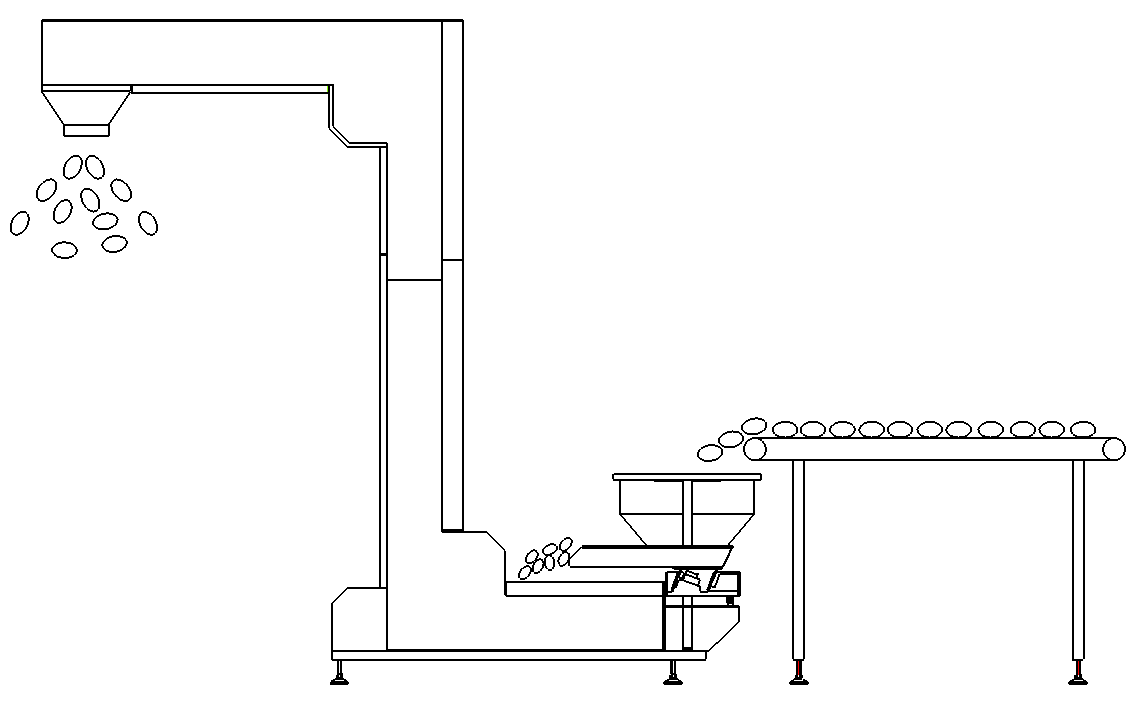

Bucket elevator is applicable for vertical lifting of granule material such as corn, food plastic and chemical industry, etc.


² Feeding speed can be adjusted by the inverter;

² Be made of stainless steel 304 construction or carbon painted steel

² Complete automatic or manual carry can be selected

² Include vibration feeder to feed products orderly into buckets, which to avoid blockage

² Electric box offer

² a. Automatic or manual emergency stop, vibration bottom, speed bottom, running indicator, power indicator, leakage switch, etc.

² b. The input voltage is 24 V or below while running.

² c. DELTA converter.
